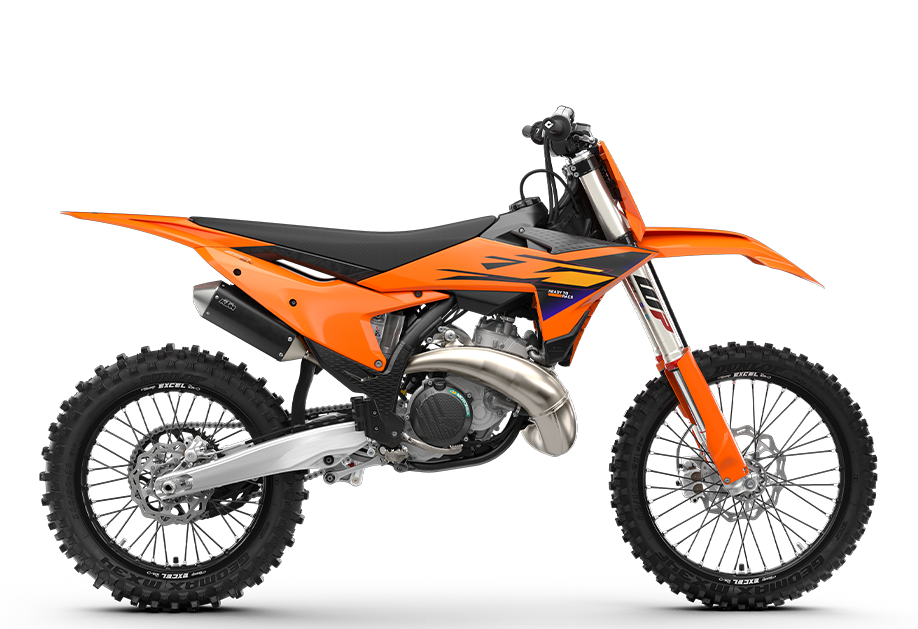

2026 KTM 250 SX
2026 KTM 250 SX for Sale at Moorooka KTM in Moorooka, QLD | Review Specifications, Features & Information
RELEASE THE RUCKUS
Think "unbridled 2-stroke performance" and you'll probably see a KTM 250 SX in your mind's eye. For good reason too - there isn't much to compare it to. The KTM 250 SX takes that even further with a slew of fresh chassis enhancements, making it even more of a legend and one deserving of the record books.
Engine
-
Design
1-cylinder, 2-stroke engine
-
Displacement
249 cm³
-
Transmission
5-speed
-
Fuel-mixture generation
Keihin EFI, throttle body 39 mm
-
EMS
Vitesco Technologies EMS
-
Clutch primary drive teeth
72
-
Primary drive
26:72
-
Clutch
Wet, DDS multi-disc clutch, Brembo hydraulics
-
Engine cylinder
Single cylinder
-
Engine stroke
2-Stroke
Chassis
-
Frame design
Central double-cradle-type 25CrMo4 steel
-
Front brake
Disc brake
-
Rear brake
Disc brake
-
Rear subframe design
Aluminum-reinforced polyamide
-
Chain
520, Non-sealed
Suspension
-
Front suspension
WP XACT-USD (AER), Ø 48 mm
-
Rear suspension
WP XACT Monoshock with linkage
-
Suspension travel (front)
310 mm
-
Suspension travel (rear)
300 mm
-
Front suspension adjustment
Compression (high and low speed), rebound
-
Rear suspension setting
Compression and rebound adjustable
Dimensions
-
Seat height
958 mm
-
Ground clearance
354 mm
-
Tank capacity (approx.)
7.2 l
The illustrated vehicles may vary in selected details from the production models and some illustrations feature optional equipment available at additional cost. All information concerning the scope of supply, appearance, services, dimensions and weights is non-binding and specified with the proviso that errors, for instance in printing, setting and/or typing, may occur; such information is subject to change without notice. Please note that model specifications may vary from country to country. In the case of coated surfaces, there may be color differences due to the usual process fluctuations. The consumption values stated refer to the roadworthy series condition of the vehicles at the time of factory delivery.
