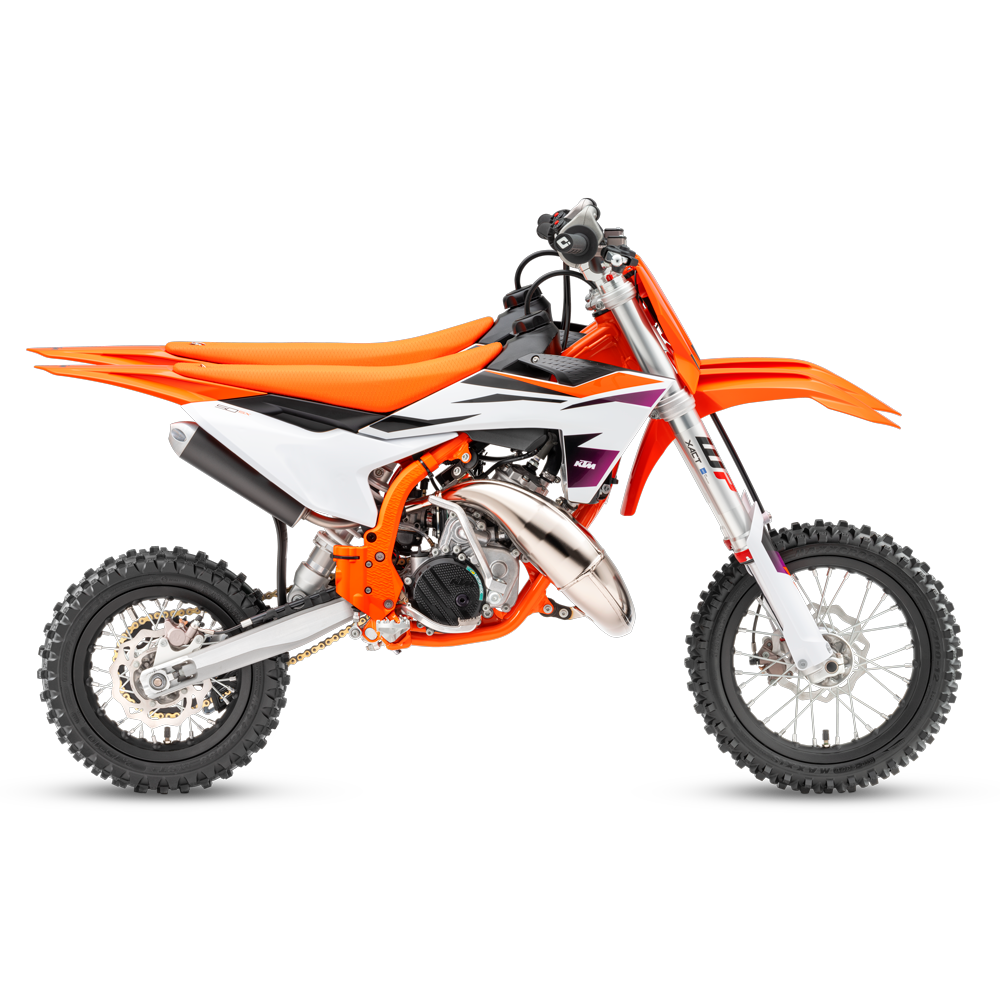

2026 KTM 50 SX
2026 KTM 50 SX for Sale at Moorooka KTM in Moorooka, QLD | Review Specifications, Features & Information
WINNING STARTS HERE
The journey starts here. The first prime platform in the KTM Sportminicycle range will satisfy any youngster's thirst for fun, speed, adventure and that unquenchable desire to learn. The KTM 50 SX is built around an advanced steel frame, housing a powerful engine, an updated WP XACT AER fork, a WP XACT monoshock, and a new, advanced hydraulic Formula brake system. Reliability, durability and READY TO RACE aesthetics and spirit means it is the only choice for small kids and the big ones too!
Adjustablity
Different adjustability options were built into the KTM 50 SX construction using scientific statistical data and young racers' input data. Finding the right fit for your little ripper is easy thanks to height-adjustable suspension, handlebar position, subframe, and bodywork, taking the seat height from a low setting of 634mm to a taller setting of 682mm.
Ignition
Fitted with a digital ignition the with improved processing power making for a cleaner burn and smoother power delivery. Individual ignition timing across the entire rpm range, just like that found on the full-sized KTM SX range, adds a key advantage. The throttle cable assembly benefits from a new stabilization cap that extends the lifetime of the cable by reducing the risk of kinking and damage.
Carburetor
A proven Dell'Orto type PHBG 19 BS carburetor takes a prime position in producing the goods in the KTM 50 SX, that works perfectly in harmony with the engine, exhaust, and air intake design.
Performance
The KTM 50 SX features a modern and compact engine using the latest 2-stroke technology. Using a 3-shaft design, the crankshaft is positioned near the center of gravity, which not only benefits mass centralization but also creates the ideal intake angle into the reed valve for top-level performance. An independent cylinder blank allows for a completed cylinder design, with increased power.
Power-Reduction Kits
For absolute beginners, the KTM POWERPARTS catalog offers a choice of two power-reduction kits. The first allows for a entry-level, moderate and controllable power reduction to 4hp, with the second permitting more intermediate power kit unleashing 8hp for mid-level riding levels.
Clutch
The KTM 50 SX is fitted with a centrifugal clutch reducing the complexity for younger riders, and helping to boost riding confidence. The multi-disc clutch delivers a precise and predictable power delivery across the RPM range. It can be set to suit rider preferences or track conditions without using any special tools. Also, a reinforced clutch basket provides extra durability, wear, and consistent performance. The clutch itself receives a boost in quality with a high-strength pre-coat and increased tightening torque for reliable fastening of the whole assembly.
Spark Plug
There's no more worrying about breaking the plug, thanks to the KTM 50 SX featuring a spark plug from BRISK with a longer thread. Also, thanks to this innovation, the part number is printed on the spark plugs for easy reading.
Airbox and Filter
The airbox features a conventional suction sleeve made from a hard-wearing polyamide instead of rubber and a Twin Air filter mounting system that features snap locks for easy and intuitive mounting. The Twin Air filter is also placed under the seat and is easily accessible without any tools by simply removing the seat. It also features improved dirt intrusion resistance, with no more dirt falling into the intake tract when changing the filter.
Ergonomics
Mimicking the full-size KTM SX range, the KTM 50 SX features the same advancements found in the larger KTM SXs. Slimmer, sleeker, and better suited to standing on the pegs, the side panels now work much better with young riders' boots, allowing a proper squeezing of the bike when standing up. The front number plate incorporates plastic flaps to protect the lower triple clamps from roost. Speaking of triple clamps, the model spectrum now has an improved fixing mechanism which hikes the lifespan of the steering head bearings thanks to the extra block from dirt and water. The wrench size is also smaller and more practical. The tank spoiler features a bicomponent technology featuring the KTM-specific texture on the upper part. Side number plates are kept as close to the frame as possible, with the general seat line sitting slightly flatter.
Handlebars & Grips
Hold on tight! The high-quality, tapered, black handlebar is made of lightweight aluminum alloy and ensures top stability, vibration damping, and control. The bend and profile is designed specifically to meet the needs of young riders, with an ODI grip on the left, and a vulcanized ODI grip on the right-side throttle assembly, adding to the overall quality. A crash pad on the handlebar protects the rider from any rough contact or impact with the bars.
Frame
The KTM 50 SX boasts a high-strength chromium molybdenum steel frame design with forged connecting parts integrated into the frame. This together with carefully calculated parameters of longitudinal flex and torsional rigidity, allow tailormade stiffness and an unprecedented quality of the Mini frame could be achieved. The frame layout features a typical MX design without any cross tube behind the steering head. Like our full-size models, the rear shock mount is separated from the main upper frame tube. The frame also comes with frame protectors as standard.
Wheels & Tires
Rolling off the race rig and into the pit lane, the KTM 50 SX uses lightweight, black anodized, aluminum rims just like the full-size KTM SX range. These provide the highest levels of strength and reliability, while MAXXIS MX-ST tires deliver outstanding performance on any terrain, along with exceptional straight-line stability.
Footpegs
A "no-dirt" footrests offer a bigger surface area for improved grip while standing on the pegs, and are less susceptible to hooking up in deep ruts, take-offs when scrubbing, or track barriers.
Suspension
Featuring the latest in suspension technology, the KTM 50 SX has an updated state-of-the-art, lightweight 35 mm USD WP XACT AER fork. With 205 mm of wheel travel, the air unit in the left fork leg can also be adjusted easily using an air pump for rider preference, weight, or track conditions. The upgrade means better damping and control and is a step forward for the suspension performance. At the rear, fully-adjustable WP XACT monoshock boasts a mounting point on the frame making it more compact, providing the perfect balance and damping characteristics to match the fork.
Brakes
Featuring the same level of technology offered on the full-size KTM SX range, the KTM 50 SX is fitted with hydraulic brake calipers and state-of-the-art front and rear waved brake discs. This system ensures advanced braking feel and unmatched stopping performance in all conditions, specifically on wet or muddy tracks, with improved durability and brake pad longevity.
Exhaust
The exhaust system benefits from the same manufacturing process as the full-size 2-stroke KTM SX range, with improved overall quality and performance. This has resulted in massive progressions in thermodynamics. Moreover, tighter sealing of the silencer end cap and a rubber between the header pipe and silencer adds another level of quality to the exhaust system. The silencer comes with a black anodized finish and a signature 'Braaaaap!'. Modifications include a flange gasket for better durability and the exhaust valve ventilation has been redesigned. It is more 'bulletproof' thanks to extra efficient and locally sourced manufacturing at KTM HQ.
Radiator
The KTM 50 SX has state-of-the-art Pankl radiators inspired by the full-size KTM SX range and features the same basic design with all the hardcore cooling properties. The KTM 50 SX uses one large radiator with more capacity instead of two smaller separate ones. This concept allows for better integration of the radiator into the frame and the tank spoilers to channel air through the cooling fins efficiently.
Hour Meter
Keep track of engine hours easily, with an hour meter mounted at the same position behind the front number plate - as on the full-size KTM SX models. This makes for easier reading and has a lower risk of dirt and water fowling up the display.
Engine
-
Design
1-cylinder, 2-stroke engine
-
Displacement
49.9 cm³
-
Transmission
Single-speed automatic
-
EMS
Dell’Orto PHBG 19 BS
-
Engine oil
ATF “Motorex Dexron 3â€
-
Clutch primary drive teeth
61
-
Primary drive
33:61
-
Clutch
Centrifugal clutch (adjustable)
-
Engine cylinder
Single cylinder
-
Engine stroke
2-Stroke
Chassis
-
Frame design
Central-tube frame with double-cradle
-
Front brake
Disc brake
-
Rear brake
Disc brake
-
Rear subframe design
Steel / Polyamide Glass Fiber
-
Chain
415, Non-sealed
Suspension
-
Front suspension
XACT 35 WP Upside-Down fork, Ø 35 mm
-
Rear suspension
XACT WP mono shock
-
Suspension travel (front)
200.6 mm
-
Suspension travel (rear)
190.5 mm
-
Front suspension adjustment
Compression and rebound adjustable
-
Rear suspension setting
Compression and rebound adjustable
Dimensions
-
Seat height
653 mm
-
Ground clearance
233 mm
-
Tank capacity (approx.)
2.3 l
The illustrated vehicles may vary in selected details from the production models and some illustrations feature optional equipment available at additional cost. All information concerning the scope of supply, appearance, services, dimensions and weights is non-binding and specified with the proviso that errors, for instance in printing, setting and/or typing, may occur; such information is subject to change without notice. Please note that model specifications may vary from country to country. In the case of coated surfaces, there may be color differences due to the usual process fluctuations. The consumption values stated refer to the roadworthy series condition of the vehicles at the time of factory delivery.
