2026 KTM SX 85 17/14
2026 KTM SX 85 17/14 for Sale at Moorooka KTM in Moorooka, QLD | Review Specifications, Features & Information
STEP INTO THE BIG LEAGUES
The last step awaits. The KTM 85 SX 17/14 is ready to raise the speed for you. Developed on track and at an international level, the KTM 85 SX 17/14 boasts significantly enhanced handling, searing power delivery and proven READY TO RACE DNA through its components and pedigree. You spoke, we listened. We developed. Now continue the journey. Fast.
Engine
-
Design
1-cylinder, 2-stroke engine
-
Displacement
84.9 cm³
-
Transmission
6-speed
-
EMS
Keihin PWK 28
-
Engine oil
Motorex Formula 4T 15W/50
-
Clutch primary drive teeth
64
-
Primary drive
20:64
-
Clutch
Wet, multi-disc clutch, Formula hydraulics
-
Engine cylinder
Single cylinder
-
Engine stroke
2-Stroke
Chassis
-
Frame design
Central-tube frame with double-cradle
-
Front brake
Disc brake
-
Rear brake
Disc brake
-
Rear subframe design
Aluminium / Polyamide Glass Fiber
-
Chain
428, Non-sealed
Suspension
-
Front suspension
XACT 43 WP Upside-Down fork, Ø 43 mm
-

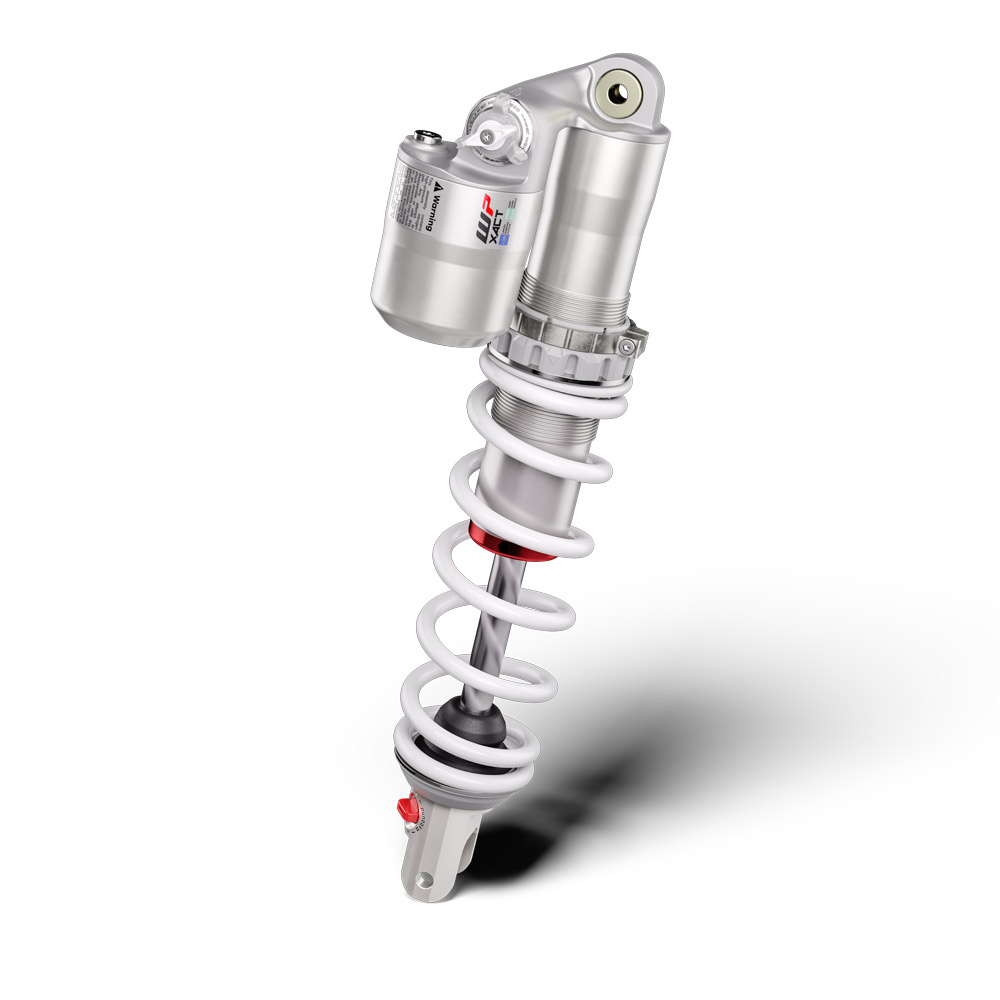

Rear suspension
XACT WP PDS mono shock
-
Suspension travel (front)
278 mm
-
Suspension travel (rear)
289 mm
-
Front suspension type
WP XACT
-
Front suspension adjustment
Compression and rebound adjustable
-
Rear suspension addition
Preload adjuster
Dimensions
-
Seat height
845 mm
-
Ground clearance
308 mm
-
Tank capacity (approx.)
5.4 l
The illustrated vehicles may vary in selected details from the production models and some illustrations feature optional equipment available at additional cost. All information concerning the scope of supply, appearance, services, dimensions and weights is non-binding and specified with the proviso that errors, for instance in printing, setting and/or typing, may occur; such information is subject to change without notice. Please note that model specifications may vary from country to country. In the case of coated surfaces, there may be color differences due to the usual process fluctuations. The consumption values stated refer to the roadworthy series condition of the vehicles at the time of factory delivery.
