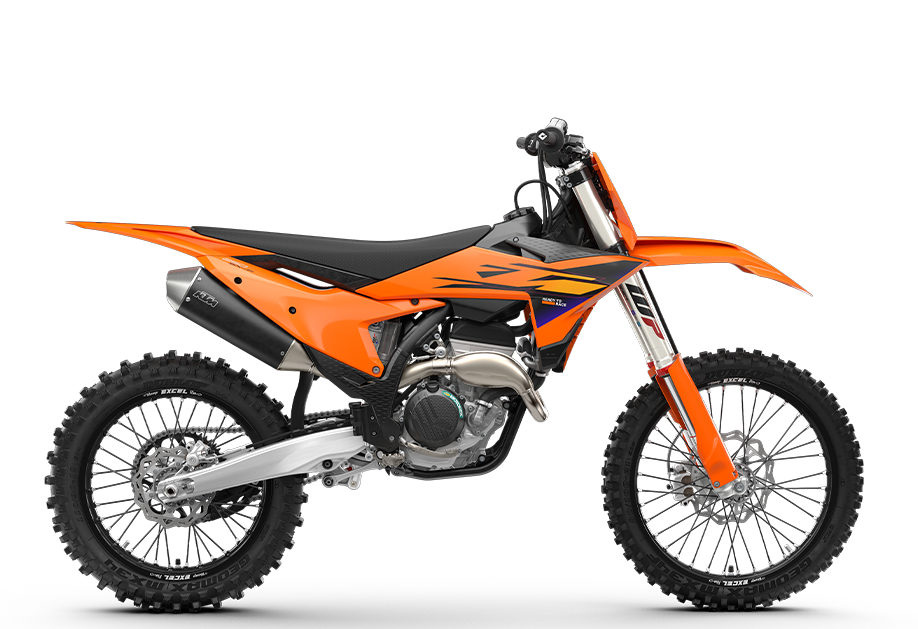

2026 KTM 250 SX-F
2026 KTM 250 SX-F for Sale at Moorooka KTM in Moorooka, QLD | Review Specifications, Features & Information
THE FIGHTER IN THE ORANGE CORNER
The KTM 250 SX-F is a truly user-friendly package engineered to satisfy all riders, from novice to pro. But don't for one second think that makes it compromised - it is undisputedly READY TO RACE at any level. Delivering a power punch, and an optional electronic uppercut in reserve, the KTM 250 SX-F is ready to take on the 250 cc class and deliver a knock-out.
Engine
-
Design
1-cylinder, 4-stroke engine
-
Displacement
249.9 cm³
-
Transmission
5-speed
-
Fuel-mixture generation
Keihin EFI, throttle body 44 mm
-
EMS
Keihin EMS
-
Clutch primary drive teeth
72
-
Primary drive
24:72
-
Clutch
Wet multi-disc DS clutch, Brembo hydraulics
-
Engine cylinder
Single cylinder
-
Engine stroke
4-Stroke
Chassis
-
Frame design
Central double-cradle-type 25CrMo4 steel
-
Front brake
Disc brake
-
Rear brake
Disc brake
-
Rear subframe design
Aluminum-reinforced polyamide
-
Chain
520, Non-sealed
Suspension
-
Front suspension
WP XACT-USD (AER), Ø 48 mm
-
Rear suspension
WP XACT Monoshock with linkage
-
Suspension travel (front)
310 mm
-
Suspension travel (rear)
300 mm
-
Front suspension adjustment
Compression (high and low speed), rebound
-
Rear suspension setting
Compression and rebound adjustable
Dimensions
-
Seat height
958 mm
-
Ground clearance
343 mm
-
Tank capacity (approx.)
7.2 l
The illustrated vehicles may vary in selected details from the production models and some illustrations feature optional equipment available at additional cost. All information concerning the scope of supply, appearance, services, dimensions and weights is non-binding and specified with the proviso that errors, for instance in printing, setting and/or typing, may occur; such information is subject to change without notice. Please note that model specifications may vary from country to country. In the case of coated surfaces, there may be color differences due to the usual process fluctuations. The consumption values stated refer to the roadworthy series condition of the vehicles at the time of factory delivery.
