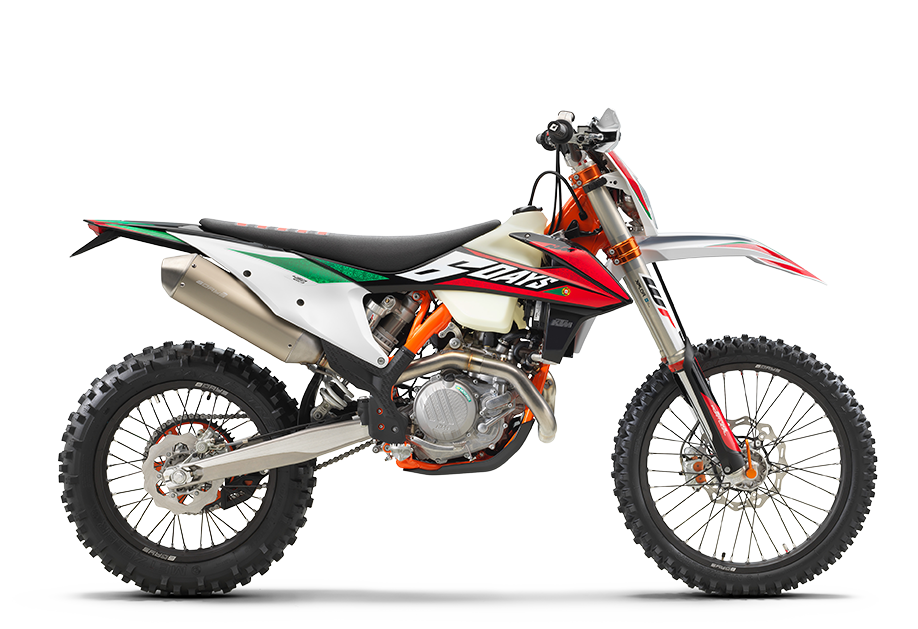

450-EXC-F Six Days

SIX DAYS, SIX WINS
KTM celebrates its prowess in the world of offroad racing with the 450 EXC-F SIX DAYS. Built to perform under the toughest race conditions like those found at the Chilean ISDE, and boasting READY TO RACE componentry, it is well-equipped to take on anything thrown at it.

CYLINDER HEAD
A single overhead camshaft controls intake and exhaust through optimized ports, while a cutting-edge combustion chamber and water jacket create mind-blowing power while managing heat. The engine's four valves rely on extremely rigid rocker arms. Double lateral brackets fix the engine to the frame and reduce vibrations.

CRANKSHAFT
The KTM 450 EXC-F's crankshaft utilizes a short connecting rod, which makes for an overall compact and lightweight engine with a snappy power delivery. A plain big (bottom) end bearing with two force-fitted bearing shells runs directly on the crank pin. The necessary oil feed for this bearing is ensured by the engine's pressurized lubrication. This design is a decisive benefit in terms of the crankshaft service interval, which can be lengthened due to the plain bearing. So just pin it, all day long.

CRANKCASES AND ENGINE COVERS
The design of the die-cast crankcases allows for minimal weight and a very centralized shaft configuration. This makes the engine short and compact, while contributing to an efficient centralization of masses. The engine covers also feature a solid surface structure, which reduces the wear caused by the rider's boots. This way, your EXC-F will keep looking better longer.

FRAME
The high-tech, lightweight chrome-moly steel frame has a knack for easy handling, outlandish rideability, precise cornering and excellent stability. You can also count on high torsional rigidity and low longitudinal stiffness. This results in better absorption of the energy created from the front and rear suspension sucking up jumps and bumps. In short: more comfort and less rider fatigue. Laterally attached, lightweight engine head stays (the connection between cylinder head and frame) contribute to a reduced vibration level. Two threaded inserts in the lower cradle tubes allow for safe fixation of an optional skid plate. The engineers could pull off all that, while making their frame a big fat kilogram lighter than that of the lightest competitor on the market. In addition, it is easier to maintain, easier to work on and supplies more space for the tank and other components. The bike also features an extra-light subframe made of stable aluminum profiles, which tiptoes the scales at less than 900g.

SWINGARM
This state-of-the-art swingarm allows for an optimized mounting position of the PDS shock absorber, providing more progressive action. Furthermore, the cast aluminum design guarantees lower weight and a perfect flex behavior. The single-component casting process also eliminates any inconsistencies and weak points.

WHEELS
The EXC-F's wheels feature lightweight, CNC machined hubs and high-end Giant rims guaranteeing maximum stability at minimum weight. The wheels are fitted with MAXXIS tires ' perfect for surefooted performance off-road and stability on-road.

FRONT SUSPENSION
The WP XPlor 48 upside-down fork is a split fork developed by WP in close collaboration with KTM. It is fitted with a spring on both sides but features separated functions for each fork leg: compression damping is fitted on the left side, while rebound is on the right. The forks can easily be adjusted for compression and rebound with the twist of a dial on the top of the forks. In addition, a sealed hydro-stop guarantees excellent resistance to bottoming-out. Due to high-quality materials and a state-of-the-art production process, the WP XPlor 48 fork with approx. 300mm of trave has outstanding response and damping characteristics. A comfortable preload adjuster is Six Days standard and allows for a simple spring preload setting in three steps without tools (standard, +3mm, +6mm).

REAR SUSPENSION
The PDS is kind of a KTM trademark where the shock absorber is directly connected to the upper side of the swingarm. This setup boasts the best possible mounting geometry and provides amazingly progressive damping. The shock absorber is mounted close to the centerline, which means nearly symmetrical loads for the swingarm and frame and more space for the exhaust system. A second piston works together with a closed cup (instead of a needle) towards the end of the stroke and is supported by a progressive shock spring for exceptional bottoming resistance. Various machined and anodized components and a distinctive WP color trim make this a valuable, high-end product compared to the less refined shock absorbers of the competition.

BRAKES
You can't brake any harder, better, faster or stronger. High-tech Brembo calipers are combined with lightweight Wave brake discs. The steel-flex front brake hose has efficient protection and there's an integrated channel for the speedometer cable. First you outrun them, then you outbrake them.

FUEL TANK
The lightweight polyethylene tank has a capacity of 8.5 liters. You will always be able to see how much fuel remains at a glance, thanks to the see-through plastic. By pushing the orange release button in the center of the fuel tank cap, the bayonet mechanism makes refueling quick and easy. It is fitted with an integrated fuel pump system and a fuel level sensor. Additionally, the fuel line features a 90° connector to the tank for better protection against damage.

AIRBOX
The air filter box design offers maximum protection of the air filter against soiling, while ensuring maximum airflow in a quiet way. The large Twin Air filter is mounted in a stiff cage, which at the same time holds the system in place. This design is so simple; you can pop a fresh one in with a face full of mud without tools and in seconds.

HANDLEBAR
KTM engineers know how to handle handlebars. This tapered unit, made of high-strength aluminum by NEKEN, features a throttle assembly with a robust aluminum body and easy free-play adjustment. An ODI volcanized grip sits on the right, while on the left side of the bar a comfortable ODI lock-on grip requires no glue or wire to secure it. You can retrofit two interchangeable throttle cams, for different response characteristics to suit your specific needs. With the standard map select switch you can select an alternative power characteristic and activate the unique traction control, a major benefit under wet riding conditions.

SEAT
Tailored to meet the needs of the world's fastest backsides, this durable seat offers great comfort, helping you master the most challenging terrain all day long.

FOOTPEGS
Sophisticated 'No Dirt' footpegs prevent jamming up of the pegs, even when digging in deep ruts. The pegs on the EXC models are 6mm higher than the ones used on SX models, which benefits ground clearance. But you can swap them at will.

SIX DAYS EQUIPMENT
Six Days seat for improved long-distance comfort, Exclusive Six Days graphics with a striking design, Handlebar map select switch, Handlebar with Six Days logo, Six Days silencer (anthracite anodized and with Six Days logo), Machined orange anodized triple clamps for extremely precise fork clamping and optimum fork function, Radiator fan for all 4-stroke models to optimize temperature management in extreme conditions, Floating front brake disc for consistent braking performance in extreme conditions, Solid rear brake disc (no slots/holes) for improved heat resistance and reduced brake pad wear, Supersprox Stealth 2-component rear sprocket with an aluminum inner ring and steel outer ring for maximum durability, Front axle puller for simple front wheel removal, Orange frame, Engine guard for effective engine protection, Orange chain guide

TRANSMISSION
The reliable 6-speed transmission features a special surface treatment on the 2nd, 3rd and 4th gears for solid reliability. The advanced 'No Dirt' gear shift lever design prevents dirt from jamming the joint of the lever and guarantees precise shifting even in the muddiest conditions. All 4-stroke EXC-F engines are fitted with a gear position sensor for tailored engine mapping for each gear.

ENGINE MANAGEMENT SYSTEM
The state-of-the-art Keihin engine management system with electronic fuel injection features a 42mm throttle body. Thanks to its unique injector position, the engine's response gives a whole new meaning to the word 'instantaneous'. Separate circuits for cold-starting and idle make on-site adjustments easy. Push the throttle back when the engine is warmed up and the cold start mode disengages.

CYLINDER AND PISTON
Inside the cylinder, with a bore of 95mm, thumps a forged box-type piston with an ultra-light piston pin. Its crown geometry is adapted perfectly to the combustion chamber, where its rigid structure and low weight shine. Thanks to low oscillating masses, the engine is as smooth as it's powerful.

BALANCER SHAFT
To balance the mass forces, the KTM 450 EXC-F engine uses a multifunctional, side-mounted balancer shaft, which at the same time drives the water pump. It has been balanced to perfection, keeping vibration levels to a minimum, even while gunning it to the maximum.

CLUTCH
The KTM 450 EXC-F employs the KTM-developed DDS clutch (damped diaphragm steel) with a wear-free steel basket and extremely heat resistant clutch plates and nitrated steel liners. This clever design employs a diaphragm spring instead of the usual coil springs, making for considerably easier clutch action. A diaphragm spring also leaves sufficient space for a damping system to be integrated into the clutch hub. The goal is traction, but durability is as well. Light operation and telepathic amounts of control are standard with this hydraulic Brembo actuated clutch.

E-STARTER
The KTM 450 EXC-F is fitted with a unique E-starter as standard, which is a clear advantage when it comes to crunch time in the heat of battle. A strong starter motor and a reliable lithium ion battery will fire up your 450 time and time again at the push of a button. To reduce weight to the minimum, there is no kick-starter system. You won't miss it. If by any chance you do, just retrofit a KTM PowerParts replacement kit to get your kicks.
Engine
-
Design
1-cylinder, 4-stroke engine
-
Displacement
449.3 cm³
-
Bore
95 mm
-
Stroke
63.4 mm
-
Starter
Electric starter
-
Clutch
Wet, DDS multi-disc clutch, Brembo hydraulics
-
EMS
Keihin EMS
-
CO2 EMISSIONS
82.3
-
FUEL CONSUMPTION
3.55
Chassis
-
Frame design
25CrMo4 steel central-tube frame
-
Front suspension
WP-USD Xplor 48 with preload adjuster
-
Rear suspension
WP Xplor PDS shock absorber
-
Suspension travel (front)
300 mm
-
Suspension travel (rear)
310 mm
-
Front brake
Disc brake
-
Rear brake
Disc brake
-
Front brake disc diameter
260 mm
-
Rear brake disc diameter
220 mm
-
CHAIN
X-RING 5/8 x 1/4"
-
Steering head angle
63.5 °
-
GROUND CLEARANCE
355mm
-
Seat height
960 mm
-
Tank capacity (approx.)
8.5 l
-
Weight READY TO RACE (without fuel)
106.5 kg
