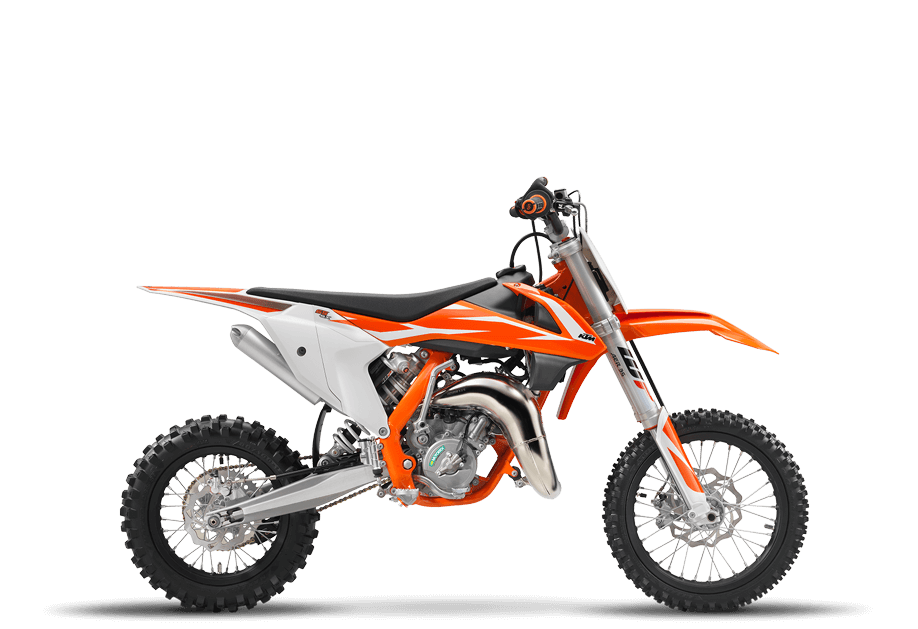

65 SX

ktm-65-sx

FAST HAS NO AGE LIMIT

The KTM 65 SX is a fully-fledged piece of sports equipment for young pilots aged around 8 to 12 years with a body height of up to 1.60m. This year’s top student features a revolutionary WP AER 35 front fork, ultra cool graphics and sets the standard in terms of power, riding dynamics, equipment and craftsmanship. Like its larger counterparts, the KTM 65 SX is truly READY TO RACE for its young competitors.

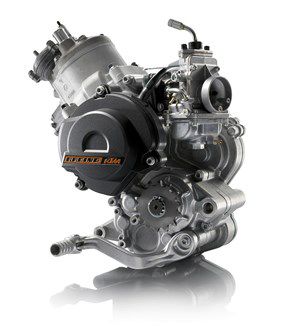

ENGINE

ENGINE

The 65 SX benefits from cutting-edge 2-stroke technology and an easy to shift 6-speed transmission with a hydraulic clutch. The cylinder, with its pressure controlled exhaust valve, provides class-leading power and plenty of torque.

CYLINDER

CYLINDER

The high performance cylinder features a pressure controlled exhaust valve (PCEV) and provides unrivaled performance within the highly competitive 65cc class.

CLUTCH

CLUTCH

An outstanding feature of the 65 SX is the hydraulic clutch made by Formula. It ensures an easy clutch action and well-defined modulation.

BODYWORK

BODYWORK

The bodywork is derived from the full-size SX models and provides perfect ergonomics, well thought-out contact points for the rider and maximum freedom of movement. In addition, smart design solutions for the new front and rear fenders are prime examples of an intelligent design, which guarantees maximum stability through a well thought-out structure and mounting.

FRAME

FRAME

The modern frame produced by WP Performance Systems is made of lightweight, high strength chromoly steel profiles and combines maximum longitudinal stiffness with optimum torsional rigidity. It guarantees easy handling and precise cornering, but also outstanding stability. The subframe, made of lightweight aluminum, is fitted with 4 screws to the frame.

GRAPHICS

GRAPHICS

Derived from the full-size SX bikes, the graphic design makes the new 65 SX look even cooler. Its frame has a super rugged polymer coating in cheeky black.

HANDLEBAR

HANDLEBAR

The classy anodized handlebar made of a high quality aluminum alloy is distinguished by the best ergonomics and the highest strength. A slide pad on the handlebar brace protects the rider from rough contact.

RADIATORS

RADIATORS

An intelligent cooling circuit with integrated crankcase cooling and two radiators improves the heat dissipation and ensures a constant temperature balance for consistent, high performance.

SWINGARM

SWINGARM

The 65 SX is fitted with a lightweight cast aluminum swingarm. Conceived using the latest in calculation and simulation software, the design and wall thickness have been made for minimum weight at optimum stiffness and precisely defined flexibility. In addition it features a robust 2-compound chain guide similar to the full-size models.

FRONT SUSPENSION

FRONT SUSPENSION

The new KTM 65 SX is the first model in its class fitted with a modern, fully adjustable air fork: the WP AER 35, made by WP Suspension. The upside-down front fork with 35mm tube diameter and 215mm of travel ensures outstanding comfort, damping characteristics and directional stability. Another main benefit for junior riders is that the air spring fitted in the left fork leg can be adjusted perfectly to the rider’s weight just with a simple air fork pump.

REAR SUSPENSION

REAR SUSPENSION

On the rear wheel a WP shock absorber linked directly to the swingarm provides excellent damping performance and is fully adjustable in order set the damping perfectly to rider’s preferences and track conditions. The rear wheel travel is 270mm.

WHEELS

WHEELS

Like the big KTM factory racers, the 65 SX has super lightweight, black anodized, aluminum rims providing highest strength and safety. The OEM knobbly MAXXIS tires grip superbly on any surface.

BRAKES

BRAKES

The 65 SX is fitted front and rear with massive 4 piston calipers that grip lightweight wave brake discs of 198mm front and 160mm rear diameter. The hydraulic brake system is easy to control and ensures the best deceleration and the highest standard when it comes to safety.

Engine

  • Design

    1-cylinder, 2-stroke engine

  • Displacement

    64.9 cm³

  • Bore

    45 mm

  • Stroke

    40.8 mm

  • Starter

    Kickstarter

  • Transmission

    6-speed

  • Primary drive

    23:75

  • Secondary gear ratio

    14:48

  • Clutch

    Wet, multi-disc clutch, Formula hydraulics

  • EMS

    AET digital
